Broadcasting / Presentation Zones

Use the broadcast feature to build speaker zones (aka. podiums) to stream your video / audio / screen to anyone in the corresponding listen zone.

You typically use this feature to build a stage where a speaker can present to an audience. The stage is the speaker zone. Anyone walking on the stage will be able to stream their video / audio / screen. The audience is the listening zone. Anyone walking in the audience will be able to see and hear the speaker(s) in the speaker zone.

Please note that access to the map editor is required to perform the following steps.

Creating a speaker zone​

  1. Open the map editor.
  2. Access the "area map editor" section.
  3. Create an area by clicking on the map directly or by selecting a zone.
  4. Click on the "speaker" icon.

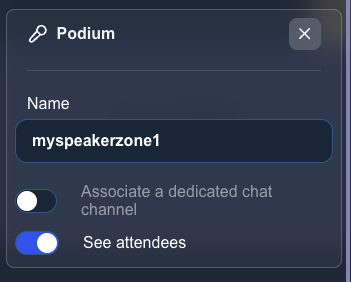

  1. Name your speaker zone. (a unique name, and this name will be used in the listener zone)
  2. (Optional) You can also create a chat channel for this zone. This forum will be used to chat with the people in the speaker zone.

Creating a listener zone​

  1. Create a new area by clicking on the map directly or by selecting a zone.
  2. Click on the "listener" icon.

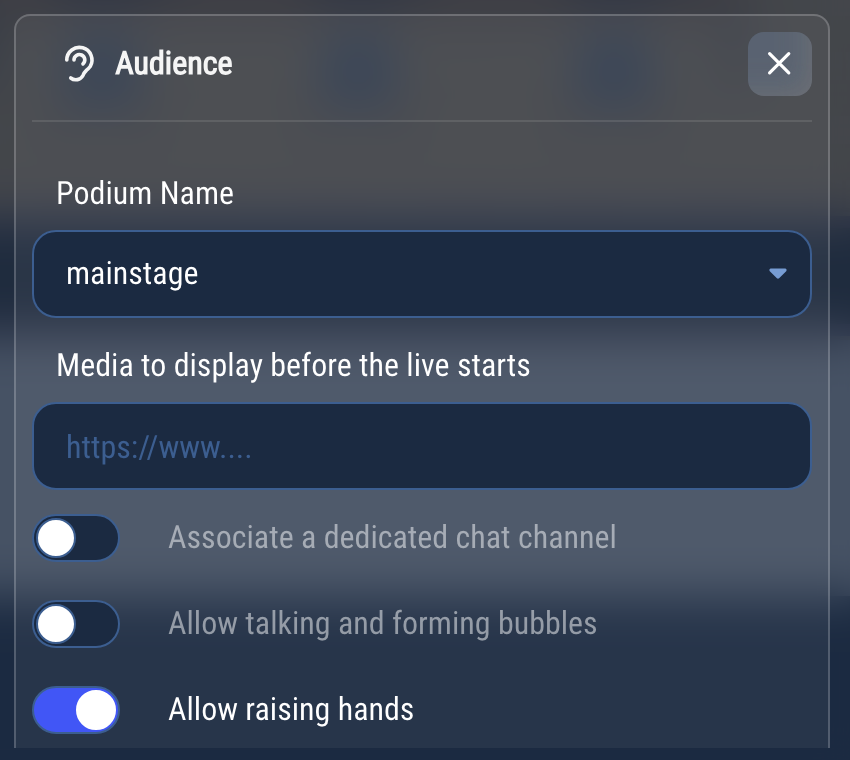

  1. Select the name, of the speaker zone that you already created, in the "speaker zone name" selector.
  2. (Optional) You can also create a chat channel for this zone. This forum will be used to chat with the people in the listener zone.
note

If you enable the "associate a dedicated chat channel" in both area, the both chat will be merged can be used by users that are in the speaker zone AND in the listener zone.

You're done ! Now, anyone in the listener zone will be able to hear/see the speakers that are in the speaker zone. When a user will enter the speaker zone, he will trigger the megaphone directly and will stream to the listener zones associated with the speaker zone.
